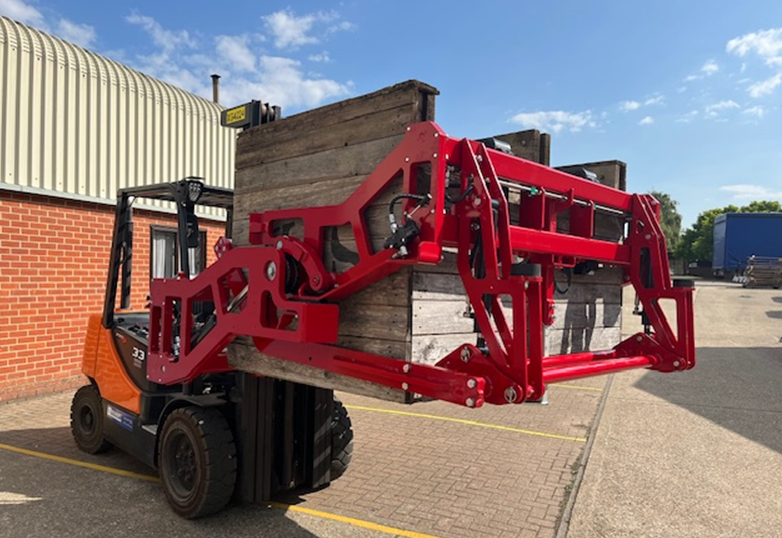

THE Broadwater K90 1800 heavy duty forward box tippler has been designed to fit and be inter-changeable between a forklift truck and a telehandler for filling hoppers, trailers or planters.
The K90 is fitted with a top roller over system to clamp a box securely, leaving the top of the box free of any obstruction or contact when being tipped forward.
The forward tippler is able to turn a box 180 degrees to make sure the contents are fully emptied, whilst doing it in a controlled manor
The K90 is operated by two hydraulic operating functions, clamping and then turning a box forward through 180 degrees, but requires only one double acting service and no electrics. As the operating system uses a sequence hydraulic pressure system. When a box is clamped, the hydraulic pressure trips the sequence valve over to the tipping function. A set of locking valves prevents the roller over clamp from opening during the tipping cycle.
A set of adjustable pallet forks and a quick hitch/unhitch mechanism by turning a handle allows the machine to be mounted/demounted from a forklift carriage quickly are standard.
